magnetic level indicator

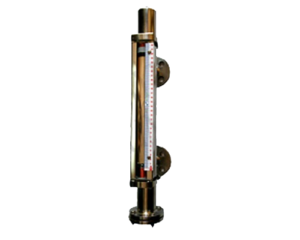

DE-02
- Connection: Flanged ASA 150 R F
- Range: 300 mm TO 6000 mm
- Press Rating: 25 Kg/cm2
- Temp. Rating: 150° C
- Calibration: cms / mm / Inches
- Material of Wetted Parts: S.S. 304/S.S. 316/P.P.

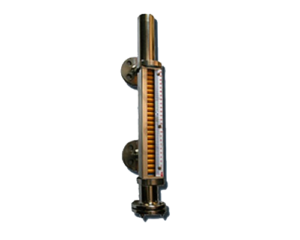

DE-03
MAGNETIC LEVEL INDICATOR FOR BI-COLOUR TYPE (SIDE MOUNT)
- Connection: Flanged ASA 150 R F
- Range: 300 mm TO 6000 mm
- Press Rating: 25 Kg/cm2
- Temp. Rating: 150° C
- Calibration: cms / mm / Inches
- Material of Wetted Parts: S.S. 304/S.S. 316/P.P.

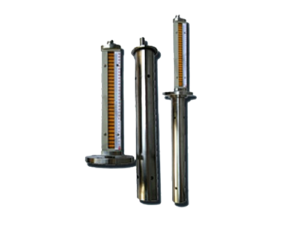

DE-04
- Connection: Flanged ASA 150
- Range: Up to 500 to 5000 mm
- Press Rating: 20 Kg/cm²
- Temp. Rating: 0ºC to 200ºC
- Calibration: cms / mm / Inches
- Material of Optional Wetted Parts : PVC/ S.S. 304/S.S.316
- Flanges : Minimum 4″
MAGNETIC LEVEL INDICATOR
- Connection: Flanged ASA 150
- Range: Up to 500 to 5000 mm
- Press Rating: 20 Kg/cm²
- Temp. Rating: 0ºC to 200ºC
- Calibration: cms / mm / Inches
- Material of Optional Wetted Parts : PVC/ S.S. 304/S.S.316
- Flanges : Minimum 4″

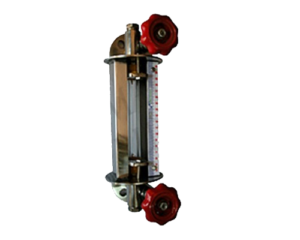

tubular level indicator
DE-01
- Connection: Flanged ASA 150#/ASA 300#
- End Fitting: CS/S.S.304/S.S 316/P.P
- Protective Channel: C.S.Rectangle Channel box With Powder Coated/ S.S.304/S.S 316
- Glass Tube: Heavy Walled Borosilicate H-19/16 / 22 / 25
- Packing: TeflonValve: C.S./S.S.304/S.S. 316/P.P.
- Press Rating: Up to 12 Kg/cm2
- Temp. Rating: Up to 100ºC to 200ºC
- Range: 300 to 5000 mm
- Vacuum: Full
MS & SS TUBULAR LEVEL INDICATOR
Other Level Indicator

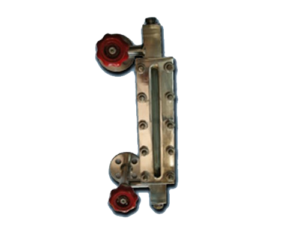

DE-05 | REFLEX LEVEL INDICATOR
- Connection: Flanged ASA 150
- LIQUID CHAMBER : C.S. / S.S. 304/ S.S. 316
- COVER PLATE : C.S. /S.s. 304/ 316
- END FITTING : C.S. /S.s. 304/S.s. 316
- VALVE BODY : C.S. /S.s. 304/ S.S. 316
- PRESS. RATING : UPTO 40 KG/CM2
- TEMP. RATING : UPTO 350° C
- RANGE : UPTO 3 METERS

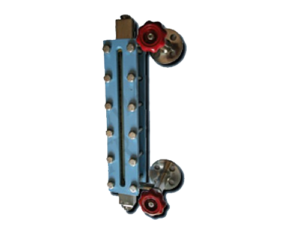

DE-06 | TRANSPARENT LEVEL INDICATOR
- Connection: Flanged ASA 150#/ASA 300#
- End Fitting: CS/S.S.304/S.S 316/P.P
- Protective Channel: C.S.Rectangle Channel box With Powder Coated/ S.S.304/S.S 316
- Glass Tube: Heavy Walled Borosilicate H-19/16 / 22 / 25
- Packing: TeflonValve: C.S./S.S.304/S.S. 316/P.P.
- Press Rating: Up to 12 Kg/cm2
- Temp. Rating: Up to 100ºC to 200ºC
- Range: 300 to 5000 mm
- Vacuum: Full

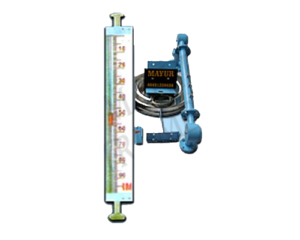

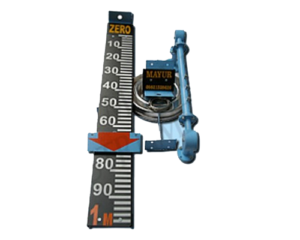

DE-08 | FLOAT & BOARD LEVEL INDICATOR
- Float: S.S. 304/S.S. 316/P.P./ Teflon Lined
- Pulley Housing: Aluminium/P.P./S.S
- Wire Rope: S.S. 304/S.S.316/P.P / Nylon
- Pulley: C.S./P.P./S.S.

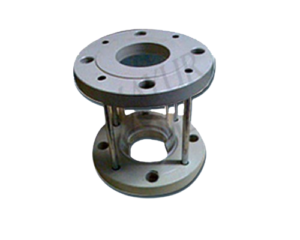

DE-10 | SIGHT FLOW INDICATOR
- Multiple viewing windows
- Accurate pressure ratings
- Standard size

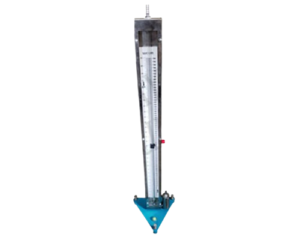

DE-12 | SINGLE LIMB MANOMETER
Dhyeya Engineering makes single limb manometer, it is a direct reading manometer for the precision measurement of pressure, vacuum, differential pressure, flow & liquid level measurement. The wall type single link manometer are accurate & dependable as well as rightly versatile for many application. the manometer is available as either single tube or multiple tube. All scale are graduated to correct for the drop in the well level.
Switches

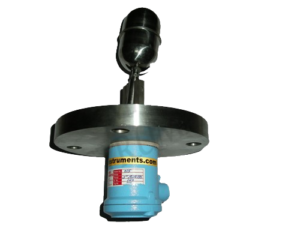

DE-15 | SIDE MOUNTED MAGNETIC LEVEL SWITCH
Mounted on side of nozzle of the tank, float position changes with the level which in turn with the help of magnetic coupling changes the switch contacts.
USED FOR : AUTOMATIC PUMP CONTROL HIGH & LOW LEVEL SIGNALS SAFETY INTERLOCK CIRCUITS
AVAILABLE : S.S. 304/ S.S. -316 / P.P./ TEFLON COATED/ WEATHER PROOF/MATERIAL FLAME PROOF ENCLOSURES OF WETTED PARTS

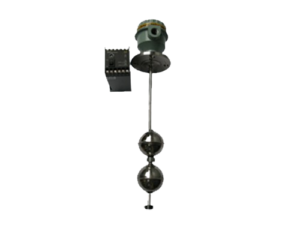

DE-14 | TOP MOUNTED LEVEL SWITCH
Suitable for automatic operation of pumps, give change over contact at predetermined level step-less adjustment of switch in point entire range without interrupting to process. Switching contact are hermitacally sealed in glass hence safe & totally protecting them from surroundings.
MATERIAL OF WETTED PARTS : S.S 304/S.S-316 / P.P / P.V.C Casing weather proof / Flame Proof

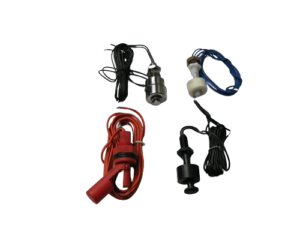

DE-16 | MINI LEVEL SWITCH
Mini Level Switch is a compact simple designed switch used in drinking fountain, machinery, electrical, chemical, marine, test instrument, food machinery, warmer machinery, washer, air condition. Available in side mounting, top mounting, bottom mounting.
